Konstruct 0.3.6

GitHub App Authentication

Konstruct 0.3.6 introduces GitHub App authentication as the recommended method for Git operations. Existing clusters using PAT authentication will continue to work without changes. Migration to GitHub App is only required when you choose to switch from PAT to GitHub App authentication.

GitHub App authentication provides secure, short-lived installation tokens and does not depend on individual user accounts. You can migrate at your own pace — PAT-based clusters remain fully functional.

Migrate from PAT to GitHub App

Prerequisites

1. A GitHub App is configured for your Konstruct instance. See GitHub App Setup.
2. The GitHub App is installed on the GitHub organization(s) used by your existing clusters.

Steps

1. Go to the organization you want to migrate.

   In the Konstruct UI, navigate to Organizations and select the organization you want to switch from PAT to GitHub App.

2. Open the Git connection tab.

   Click the Git connection tab in the organization view.

3. Connect via GitHub App.

   Click Connect and complete the GitHub App authorization flow. This will redirect you to GitHub where you authorize the Konstruct GitHub App and select the organization to install it on.

4. Confirm the connection.

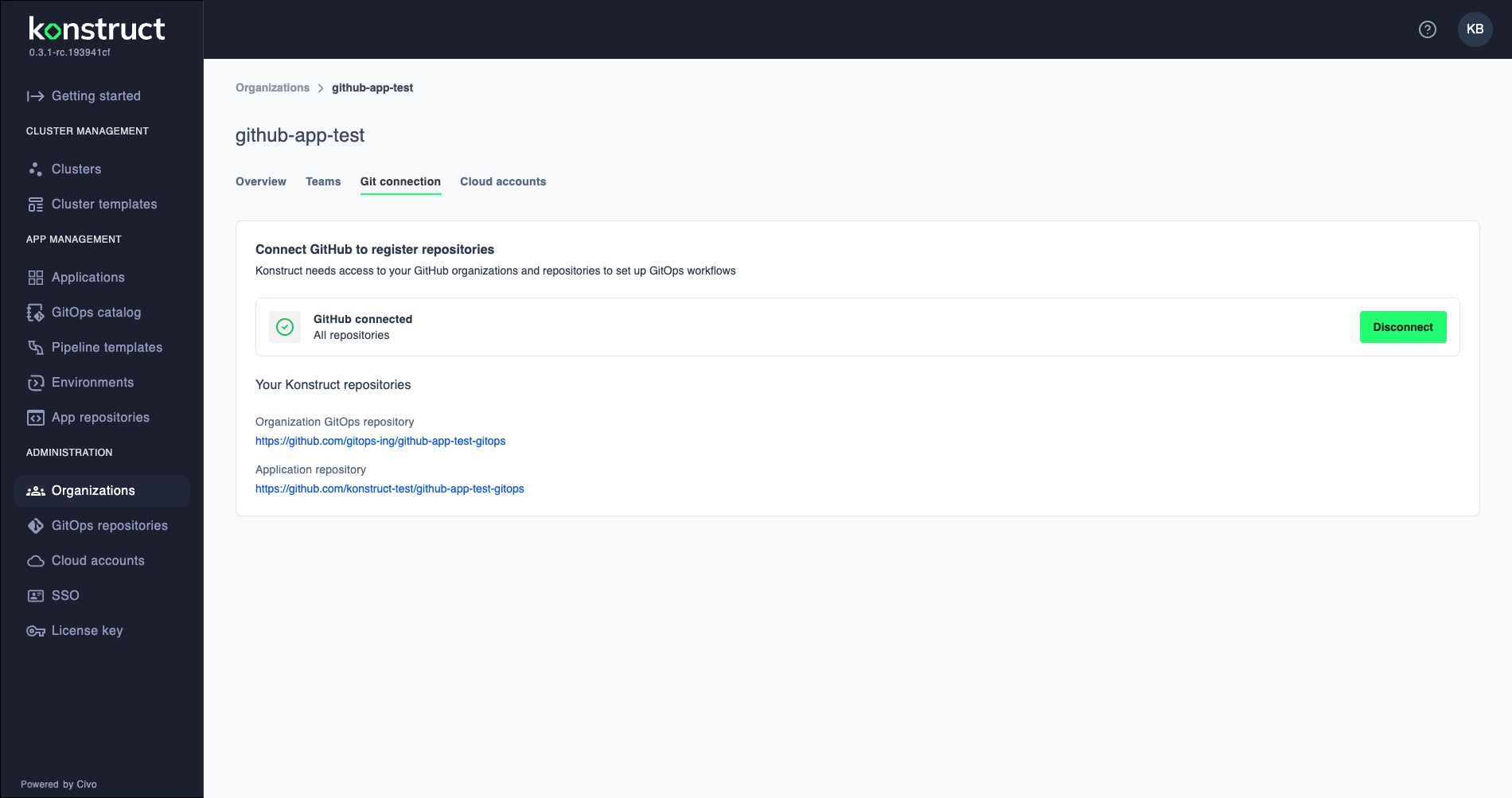

   After completing the flow, you should see the GitHub connected status with your Konstruct repositories listed:



5. Update the ArgoCD secrets and Crossplane secrets on the management cluster as described in the next section.

Update ArgoCD Repo Credentials on the Management Cluster

When migrating from PAT to GitHub App, the ArgoCD repository credential secrets on the management cluster must be updated. These ExternalSecrets pull credentials from Vault and create ArgoCD repo secrets — no changes are needed on the workload clusters themselves.

note

This only applies to clusters you are actively migrating from PAT to GitHub App. Clusters that remain on PAT do not need any changes.

What Changed

The ArgoCD repo credential ExternalSecrets on the management cluster now use GitHub App fields (githubAppID, githubAppInstallationID, githubAppPrivateKey) instead of PAT fields (username, password).

Steps

1. Update Vault secrets.

   Ensure the ArgoCD repo credential paths in Vault (argocd/repo-credentials-template/<PROJECT_NAME> and argocd/repo-credentials-template/<PROJECT_NAME>-platform) contain the new GitHub App fields:

   • type — e.g., git
   • url — the repository URL
   • githubAppID — the GitHub App ID
   • githubAppInstallationID — the installation ID for the organization
   • githubAppPrivateKey — the GitHub App private key (PEM format)

2. Update the ArgoCD repo credential ExternalSecrets on the management cluster.

   In the management cluster's GitOps repo, update secrets/secret.yaml — replace the PAT fields in both ExternalSecret resources (downstream and platform) with GitHub App fields:

   data:
     type: "{{ .type }}"
     url: "{{ .url }}"
     githubAppID: "{{ .githubAppID }}"
     githubAppInstallationID: "{{ .githubAppInstallationID }}"
     githubAppPrivateKey: "{{ .githubAppPrivateKey }}"

   Also update crossplane-components/crossplane-secrets.yaml — replace the old git-credentials ExternalSecret with a github-app-credentials ExternalSecret:

   data:
     type: "{{ .type }}"
     url: "{{ .url }}"
     app_id: "{{ .githubAppID }}"
     installation_id: "{{ .githubAppInstallationID }}"
     github_app_private_key: "{{ .githubAppPrivateKey }}"

   Commit and push the changes. ArgoCD will sync the updated ExternalSecrets automatically.

3. Update the Crossplane Terraform provider and logs streamer.

   In crossplane-components/controllerconfig.yaml, update the provider and logs streamer images:

   containers:
   - name: package-runtime
     image: ghcr.io/konstructio/provider-terraform:v0.0.1-rc.2

   - name: log-streamer
     image: ghcr.io/konstructio/logs-streamer:v0.0.10

   Also add Prometheus scrape annotations to the pod template metadata:

   annotations:
     prometheus.io/scrape: "true"
     prometheus.io/port: "8080"
     prometheus.io/path: "/metrics"

4. Add metrics port to the Crossplane provider service.

   In crossplane-components/svc.yaml, add the metrics port:

   ports:
   - port: 9090
     targetPort: 9090
     protocol: TCP
     name: http
   - port: 8080
     targetPort: 8080
     protocol: TCP
     name: metrics

5. Add the Crossplane provider Terraform ServiceMonitor.

   Create crossplane-components/servicemonitor.yaml to enable Prometheus metrics collection from the Crossplane Terraform provider:

   apiVersion: monitoring.coreos.com/v1
   kind: ServiceMonitor
   metadata:
     name: crossplane-provider-terraform
     namespace: crossplane-system
     labels:
       app: crossplane-provider-terraform
   spec:
     namespaceSelector:
       matchNames:
         - crossplane-system
     selector:
       matchLabels:
         app: log-streamer
     endpoints:
       - port: metrics
         path: /metrics
         scheme: http
         interval: 15s

6. Add kube-prometheus-stack for workload clusters.

   Create 35-kube-prometheus-stack.yaml to deploy a Prometheus instance on workload clusters that forwards metrics to the management cluster via remote write:

   apiVersion: argoproj.io/v1alpha1
   kind: Application
   metadata:
     name: kube-prometheus-stack-<WORKLOAD_CLUSTER_NAME>
     namespace: argocd
     annotations:
       argocd.argoproj.io/sync-wave: '35'
     finalizers:
       - resources-finalizer.argocd.argoproj.io
   spec:
     project: <WORKLOAD_CLUSTER_NAME>
     destination:
       namespace: observability
       name: <WORKLOAD_CLUSTER_NAME>
     source:
       repoURL: https://prometheus-community.github.io/helm-charts
       chart: kube-prometheus-stack
       targetRevision: 68.3.0
       helm:
         releaseName: kube-prometheus-stack
         values: |
           grafana:
             enabled: false
           alertmanager:
             enabled: false
           prometheus:
             enabled: true
             prometheusSpec:
               scrapeInterval: 5s
               retention: 2h
               externalLabels:
                 cluster: <WORKLOAD_CLUSTER_NAME>
               remoteWrite:
                 - url: "https://prometheus-remote-write.<DOMAIN_NAME>/api/v1/write"
               serviceMonitorSelectorNilUsesHelmValues: false
               podMonitorSelectorNilUsesHelmValues: false
               storageSpec: {}
           prometheusOperator:
             enabled: true
           defaultRules:
             create: false
           kubeStateMetrics:
             enabled: false
           nodeExporter:
             enabled: false
           kubeApiServer:
             enabled: false
           kubelet:
             enabled: false
           kubeControllerManager:
             enabled: false
           coreDns:
             enabled: false
           kubeScheduler:
             enabled: false
           kubeProxy:
             enabled: false
           kubeEtcd:
             enabled: false
     syncPolicy:
       automated:
         prune: true
         selfHeal: true
       syncOptions:
         - CreateNamespace=true
         - ServerSideApply=true

   Replace <WORKLOAD_CLUSTER_NAME> and <DOMAIN_NAME> with your cluster name and domain.

7. Update the cluster templates (for new clusters).

   Apply all the above changes to the corresponding files under templates/workload-project-cluster/ in konstruct-templates so that newly provisioned clusters include these updates from the start.

8. Verify ArgoCD can authenticate.

   Check that ArgoCD can sync applications by viewing the ArgoCD UI or checking application sync status. The repository secrets should now contain app_id, installation_id, and github_app_private_key fields instead of username and password.

Troubleshooting

• Clone fails with authentication failed: Ensure the GitHub App is installed on the correct organization and that the installation has the required repository permissions.
• GitAccount not updated: Verify that the old PAT-based GitAccount was deleted and the new GitHub App GitAccount exists in the same namespace.
• Operator not picking up changes: Restart the workloadcluster-operator pod or wait for the next reconciliation cycle.
• ArgoCD repo secret missing GitHub App fields: Check that the Vault path contains the new fields (githubAppID, githubAppInstallationID, githubAppPrivateKey) and that the ExternalSecret has been updated.
• Crossplane Terraform provider fails to clone: Verify the github-app-credentials ExternalSecret exists in the crossplane-system namespace and that it references the correct Vault path.
